Grain Vertical Steel Corn Storage Silo Steel

Product Categories

shanghai Sooan International trade Co,Ltd

Contact Now

Grain Vertical Steel Corn Storage Silo Steel

Name: Grain Vertical Steel Corn Storage Silo Steel
Brand: Smartion
Price: 10 USD

Brand Name : Smartion

Model Number : SA-STS01

Certification : ISO9001/EN1090

Place of Origin : Jiangsu, China(mainland)

MOQ : 1/Set

Price : $10,000.00-$65,432.00/ Sets

Payment Terms : L/C, T/T, Western Union, VISA, Online Bank Payment

Supply Ability : 30-15000m3

Delivery Time : 25-45 working days after getting down payment

Packaging Details : Flat packed into standard shipping container

Capacity : 10-10,000 tons can provide

OEM/ODM : YES

BBottom Type : Hopper bottom or flat bottom

Usage : Cement, grain storage steel silos

After sale : 24 o'clock online, feel free to answer at any time

Application : Grain Steel Silo for Corn Wheat Soya Paddy Nuts Storage Using

Contact Now

Product Description

Product Application of 50ton grain storage aggregate cement silo for batching plant for sale
1.For storing cement, fly ash and other powder substances
2.Used for Concrete mixing plant, stabilized soil mixing plant and so on.
3.Bolted cement silo is desighed specifically for cement silo export packing difficult,on-site produce diffculties, difficulties in transferring the site,ultra-wide transportation and many other problems.
Main Features of 50ton grain storage aggregate cement silo for batching plant for sale
1) Simple structure in type ,easy in installation and maintation.
2)We have Broken arch,cement and other powder are not easy to agglomerate.
3) There is ladder,easily and safelly to maintenance.
4) Safety valve:Prevent warehouse explosion
5) Dust removal system:Protect the environment, protect the work environment is clean.

Features

1	Automatic-flow unloading
2	Save resources and costs
3	Hopper angles can be 45° and 60°
4	Could be movable
5	Easily to be installed
6	Do not need serious concrete, labor, and energy cost
7	Less grain residues in steel insulated storage silo
8	Hopper structure prevents loss of time and money during the unloading period

Technical Specifications

Hopper Bottom Steel Silo Technical Specifications
Capacity	50T	100T	150T	200T	300T	500T	1000T	1500T
Diameter (m)	3.667	4.584	5.5	5.5	6.417	7.334	10.084	12.834
Total Hight (m)	9.56	11.41	12.13	15.49	17.33	21.42	23.61	23.51
Volume (m³) Density:0.75T/m³	69	131	195	275	418	699	1379	2039

Flat Bottom Steel Silo Technical Specifications
Capacity	1000T	1500T	2000T	2500T	3000T	5000T	8000T	10000T
Diameter (m)	10.084	11.918	13.75	14.668	15.584	18.334	22.918	26.585
Total Hight (m)	18.69	20.34	20.87	22.25	24.78	28.6	29.85	30.85
Volume (m³) Density:0.75T/m³	1335	2009	2701	3278	4145	6693	10640	14513

Detail Description

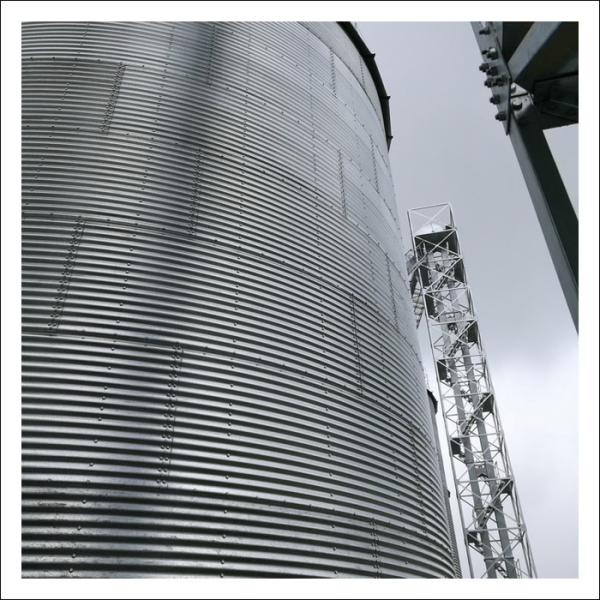

The Body of storage grain silo Include the wall plate, column, manhole, roof ladders and so on.
(1)	The wall plate of grain silo Our steel is hot galvanized, which makes it durable and weather resistant. Our advanced bolts with spherical washer and the resisting-worn rubber are used to ensure the tightness and using period.
(2)	Column of Flat bottom grain silos The column, made by the Z-bar, is used to reinforce the silo body. It is connected by junction panels.
(3)	Manhole and Roof Ladders of grain silos There are inspection door and ladders inside and outside the corn silos body. It is convenient and accessible for any maintenance work.
